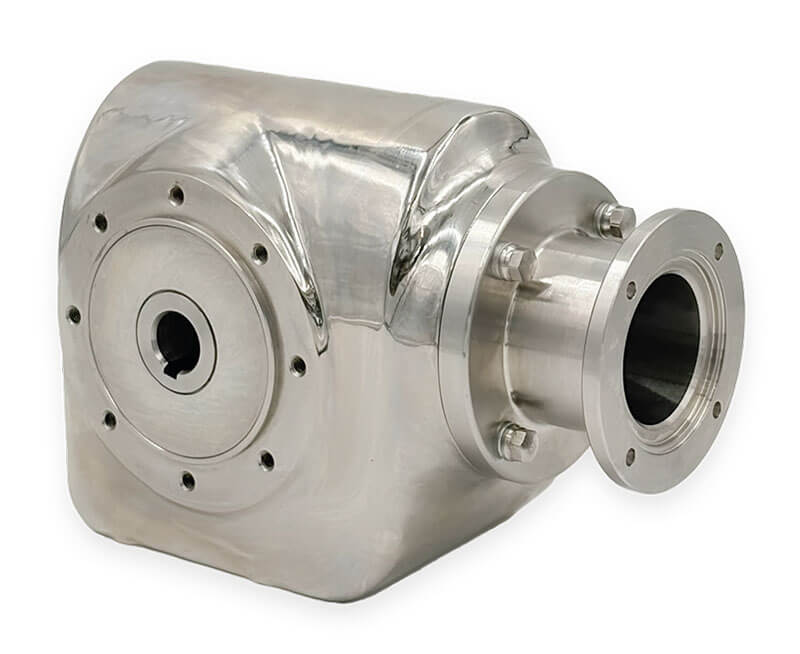

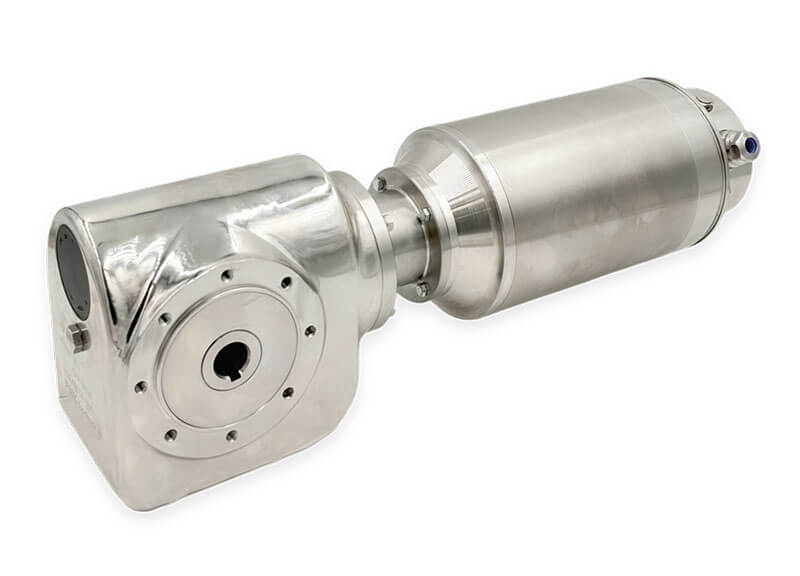

HYGIENIC SERIES STAINLESS STEEL AND ALUMINUM GEARBOXES AND GEARMOTORS

The Hygienic series gearboxes and gearmotors have been developed with a fluid design without sharp edges, designed to prevent product accumulation during production processes or in the presence of liquid and dusty substances.

The AISI 304 stainless steel structure with a mirror-polished finish guarantees a hygienic surface, resistant to external agents and easy to sanitize. The input interface is compatible with IEC motors and can be easily adapted thanks to an interchangeable flange and joint system. The elastic joint also helps protect the gear box from stress during starts and stops.

On the output side, the gearboxes are equipped with AISI 304 stainless steel metric hollow shafts, various flange options and torque arms. The sealing system is enhanced with double FKM rings and a protection plate, which allows a high degree of protection IP69K to be achieved.

Thanks to these features, the Hygienic series is ideal for applications in the food processing sectors (meat, fish, fruit and vegetables, dairy products, flour and derivatives, bakery products, animal feed), the pharmaceutical and chemical industries, as well as for uses in the naval sector, in food packaging, in bottling and in environments with high exposure to corrosive substances or adverse weather conditions.

Request a free quote – We are at your disposal

Call us at +39 080.5367090 or send an email to info@chtmotor.com
